Strut channel Unistrut Bracket Bracing System

Strut channels are manufactured by a series of forming dies, or rolls, which progressively cold work the strip steel into the desired channel configuration. This method produces a cross-section of uniform dimensions within a tolerance of ±0.015″

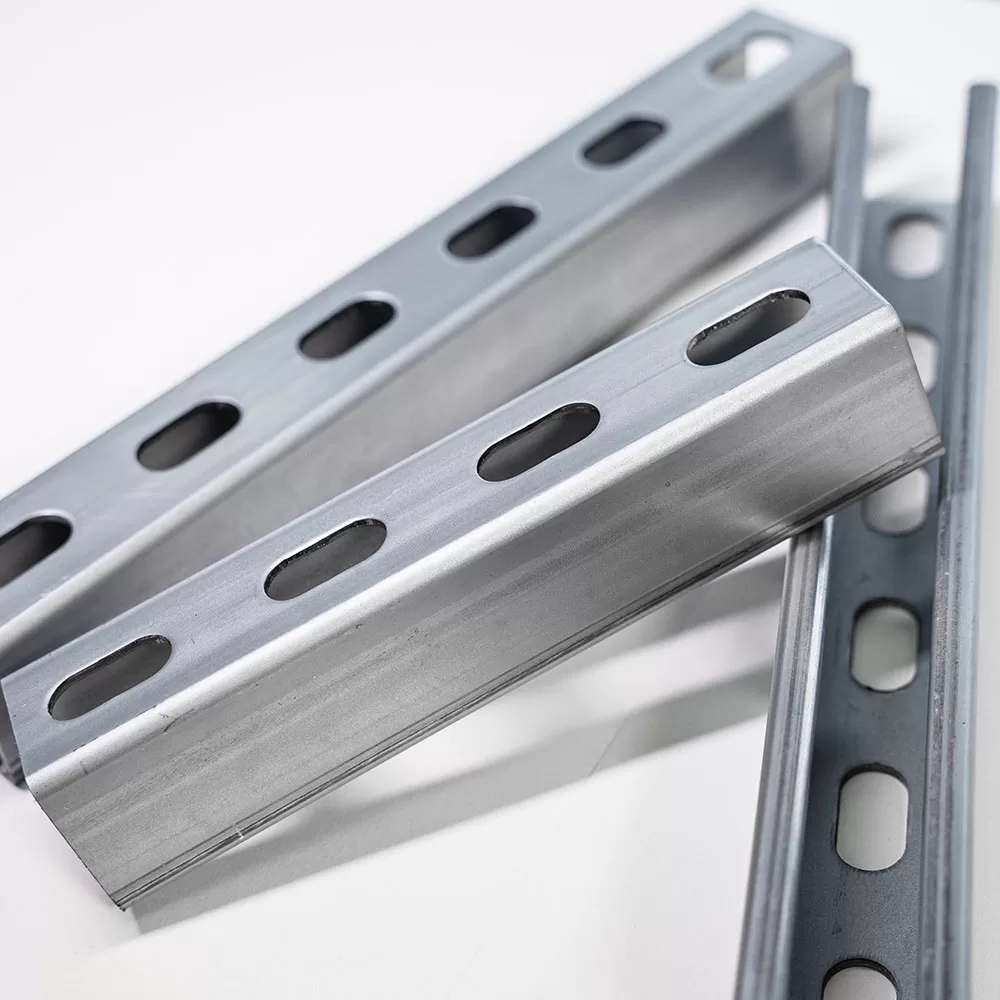

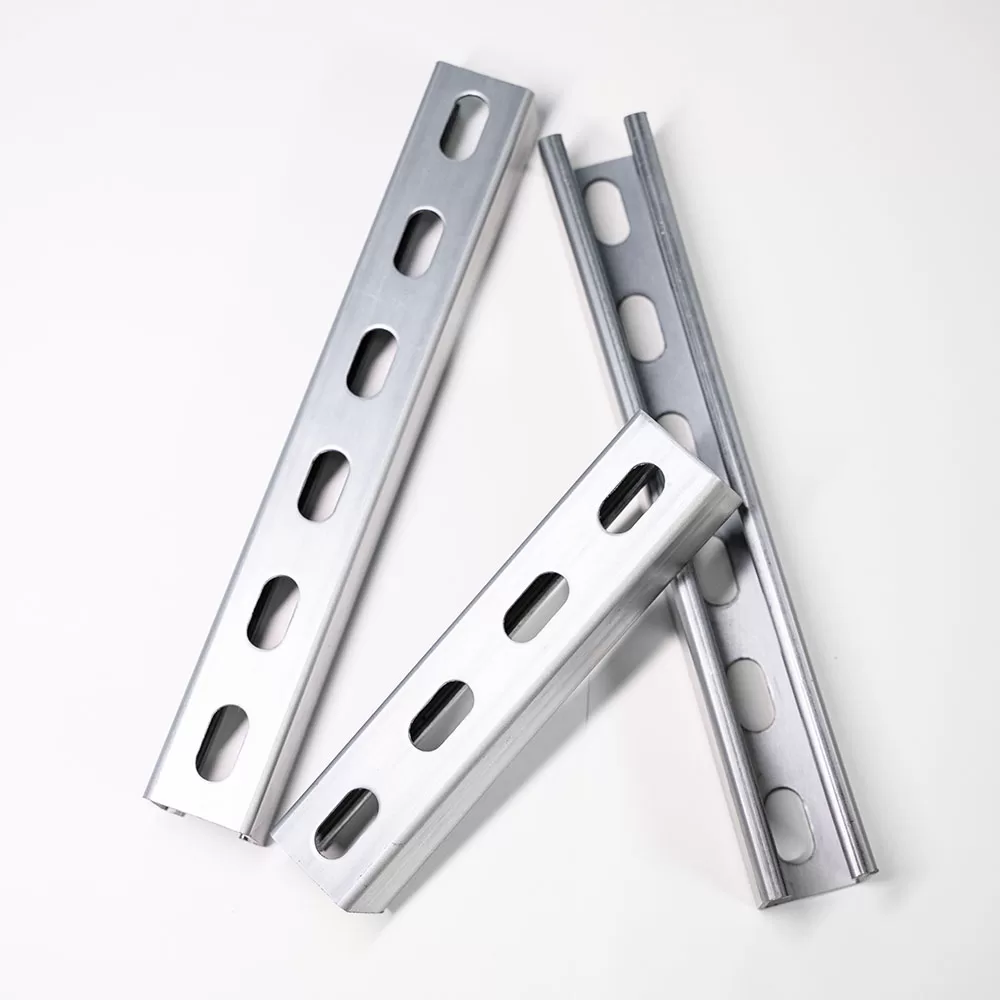

Strut channel

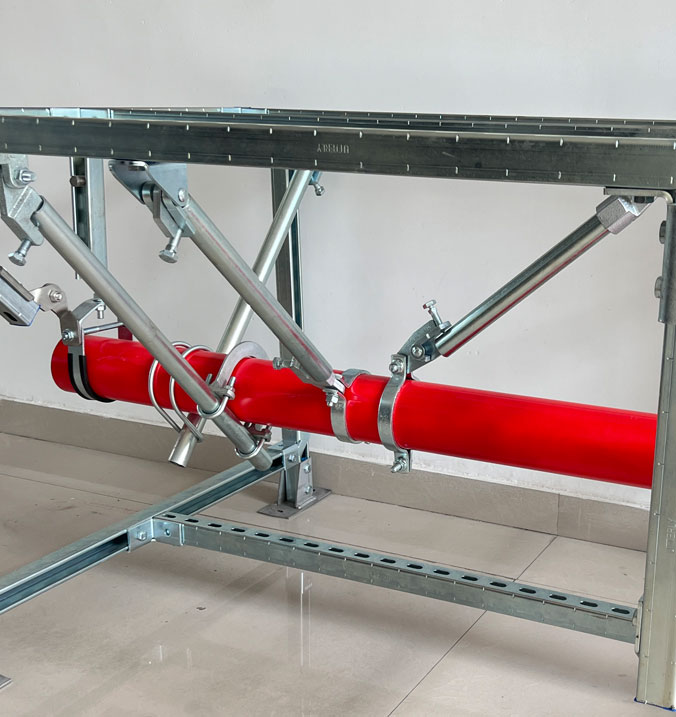

Bracket system

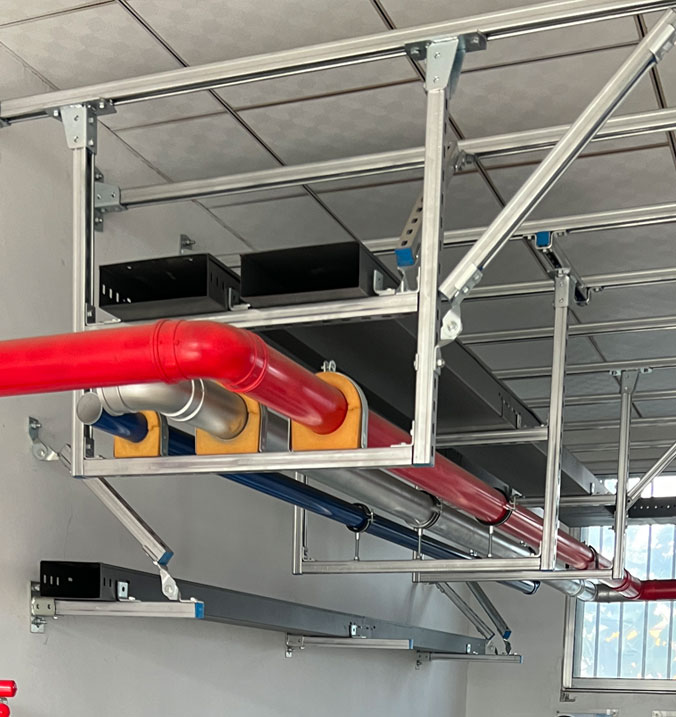

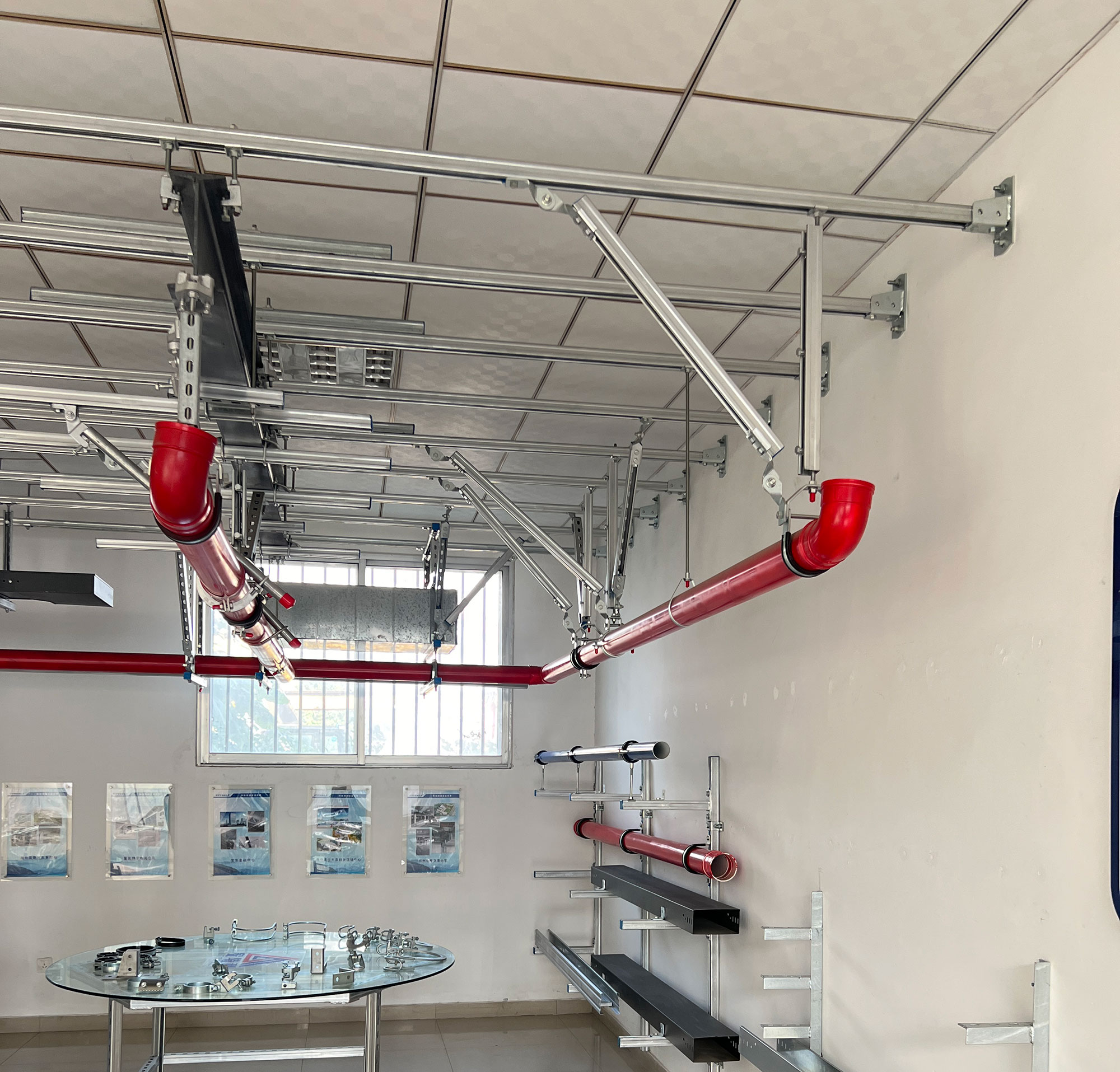

Support And Hanger

Strut channel Specification

1-5/8” X1-5/8” X 10ft

  •  41.3mmX41.3mmX3048mm
  • Weight per piece: 185*0.45359/10=8.391KG
  • 12/14 Gauge Channel with Slots 9/16″ X 1-1/8″ on 2″ Centers
  • 1-5/8″ X 1-5/8″

1-5/8” X13/16” X 10ft

  •  41.3mmX20.64mmX3048mm
  • Weight per piece: 87*0.45359/10=3.946KG
  • 12/14 Gauge Channel with Slots 9/16″ X 1-1/8″ on 2″ Centers
  • 13/16″ X 1-5/8″

Tolerance:
Length tolerance: +/-1/8″ (3.175mm)
External dimension (width/height) tolerance: 0.015″ (0.381mm)

Material and wall thickness：

  • 12Gage (Normal 0.1084″ (2.75mm), minimum 0.0994″ (2.52mm), maximum 0.1174″ (2.98mm))
  • 14Gage (Normal 0.0785″ (2mm), minimum 0.0705″ (1.8mm), maximum 0.0865″ (2.2mm))
  • Material: Q235B galvanized sheet
  • Zinc layer: 275g on both sides
  • Galvanized sheet without pattern, conventional coil
