fence Pipe tube Post in usa and ca
Galvanized Pipe and Tube are a significant component in our Fence systems. wfpipeusa stocks an extensive range and quantity of sizes and specifications which are available for alternate applications such as sign posts and non structural supports. The bulk of our pipe is manufactured to one of two specifications: BS LITE for Commercial Weight Hot Dip Galvanized Pipe and ASTM A53 Grade A for Schedule 40 Hot Dip Galvanized Pipe. wfpipeusa Fence Quality Control Program ensures that all Steel Pipe conform in strict accordance with their respective Standards and Specifications.
Call a wfpipeusa US representative for details.
| SIZE（OD” * WT” * L(FT) | OD | Wall Thickness | Length | PCS/ BUNDLE | TONS/ BUNDLE | ||||
| inch | mm | inch | mm | FT | mm | ||||
| .065″ FENCE PIPES TUBES | 1.315″X.065″X18′ | 1.315 | 33.4 | 0.065 | 1.65 | 18 | 5486 | 91 | 0.645 |
| 1.660″X.065″X18′ | 1.660 | 42.2 | 0.065 | 1.65 | 18 | 5486 | 61 | 0.552 | |
| 1.900″X.065″X18′ | 1.900 | 48.3 | 0.065 | 1.65 | 18 | 5486 | 61 | 0.635 | |
| 2.375″X.065″X18′ | 2.375 | 60.3 | 0.065 | 1.65 | 18 | 5486 | 37 | 0.484 | |
| 1.315″X.065″X21′ | 1.315 | 33.4 | 0.065 | 1.65 | 21 | 6400 | 91 | 0.752 | |
| 1.660″X.065″X21′ | 1.660 | 42.2 | 0.065 | 1.65 | 21 | 6400 | 61 | 0.644 | |
| 1.900″X.065″X21′ | 1.900 | 48.3 | 0.065 | 1.65 | 21 | 6400 | 61 | 0.741 | |
| 2.375″X.065″X21′ | 2.375 | 60.3 | 0.065 | 1.65 | 21 | 6400 | 37 | 0.565 | |
| 1.315″X.065″X24′ | 1.315 | 33.4 | 0.065 | 1.65 | 24 | 7315 | 91 | 0.860 | |
| 1.660″X.065″X24′ | 1.660 | 42.2 | 0.065 | 1.65 | 24 | 7315 | 61 | 0.736 | |
| 1.900″X.065″X24′ | 1.900 | 48.3 | 0.065 | 1.65 | 24 | 7315 | 61 | 0.847 | |
| 2.375″X.065″X24′ | 2.375 | 60.3 | 0.065 | 1.65 | 24 | 7315 | 37 | 0.646 | |
1. Hot dipped galvanized.
2. Plain Ends.
3. Plastic sheet covered and the packaged by 3+2+2+3 Gal steel strips.
4. Shipped by 20GP or 40GP or by bulk.

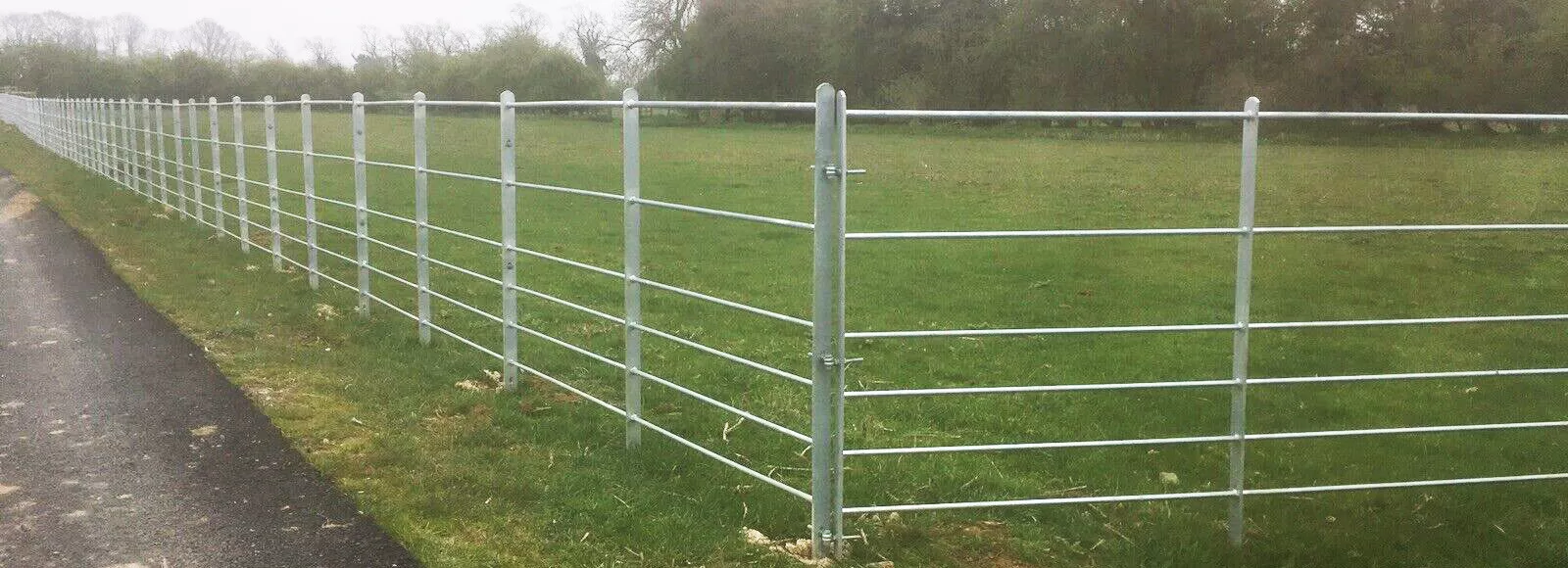

Fence Panel
Panels:12″*6″，10″*6″，10″*8″
Stands:30″*16″,36″*16″
| SIZE（OD” * WT” * L(FT) | OD | Wall Thickness | Length | PCS/ BUNDLE | TONS/ BUNDLE | ||||
| inch | mm | inch | mm | FT | mm | ||||
| .069″ FENCE PIPE TUBES | 1.315″X.069″X18′ | 1.315 | 33.4 | 0.069 | 1.75 | 18 | 5486 | 91 | 0.682 |
| 1.660″X.069″X18′ | 1.660 | 42.2 | 0.069 | 1.75 | 18 | 5486 | 61 | 0.584 | |
| 1.900″X.069″X18′ | 1.900 | 48.3 | 0.069 | 1.75 | 18 | 5486 | 61 | 0.672 | |
| 2.375″X.069″X18′ | 2.375 | 60.3 | 0.069 | 1.75 | 18 | 5486 | 37 | 0.513 | |
| 1.315″X.069″X21′ | 1.315 | 33.4 | 0.069 | 1.75 | 21 | 6400 | 91 | 0.795 | |
| 1.660″X.069″X21′ | 1.660 | 42.2 | 0.069 | 1.75 | 21 | 6400 | 61 | 0.681 | |
| 1.900″X.069″X21′ | 1.900 | 48.3 | 0.069 | 1.75 | 21 | 6400 | 61 | 0.784 | |
| 2.375″X.069″X21′ | 2.375 | 60.3 | 0.069 | 1.75 | 21 | 6400 | 37 | 0.598 | |
| 1.315″X.069″X24′ | 1.315 | 33.4 | 0.069 | 1.75 | 24 | 7315 | 91 | 0.909 | |
| 1.660″X.069″X24′ | 1.660 | 42.2 | 0.069 | 1.75 | 24 | 7315 | 61 | 0.779 | |
| 1.900″X.069″X24′ | 1.900 | 48.3 | 0.069 | 1.75 | 24 | 7315 | 61 | 0.896 | |
| 2.375″X.069″X24′ | 2.375 | 60.3 | 0.069 | 1.75 | 24 | 7315 | 37 | 0.684 | |
