UL FM ASTM A53 / A795 Fire Pipe in usa and ca

ASTM A795

UL & FM

ASTM A135

UL & FM

ASTM A53

UL & FM

BS1387 Fire Pipe

UL & FM

DIN2440/EN10255 Fire Pipe

UL & FM

ASTM A53/A795 SCH10 GR.A & GR.B WELDED FIRE SPRINKLER STEEL PIPE
Size OD Wall Thickness Unit Weight
DN-in. DN-mm inch mm inch mm lb/ft kg/m
1″ 25 1.315 33.4 0.109 2.77 1.41 2.091
1 1/4″ 32 1.660 42.2 0.109 2.77 1.81 2.690
1 1/2″ 40 1.900 48.3 0.109 2.77 2.09 3.106
2″ 50 2.375 60.3 0.109 2.77 2.64 3.930
2 1/2″ 65 2.875 73.0 0.12 3.05 3.53 5.260
3″ 80 3.500 88.9 0.12 3.05 4.34 6.453
3 1/2″ 90 4.000 101.6 0.12 3.05 4.98 7.408
4″ 100 4.500 114.3 0.12 3.05 5.62 8.362
5″ 125 5.563 141.3 0.134 3.40 7.78 11.574
6″ 150 6.625 168.3 0.134 3.40 9.30 13.838
8″ 200 8.625 219.1 0.188 4.78 16.96 25.235

1. Black and Hot dipped galvanized.

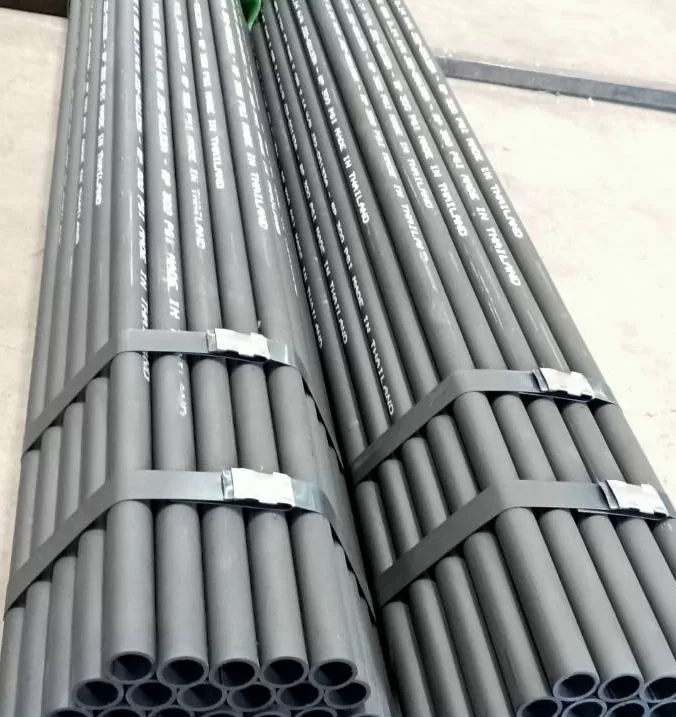

2. Plastic sheet covered and the packaged by 3+2+2+3 Gal steel strips.

3. Shipped by 20GP or 40GP or by bulk.

4.SCH10 pipes with Plain Ends and Grooved Ends

5.SCH40 pipes with Plain Ends and Grooved Ends and Threaded Ends.

ASTM A53/A795 SCH40 GR.A & GR.B WELDED AND SEAMLESS FIRE SPRINKLER STEEL PIPE
Size OD Wall Thickness Unit Weight
DN-in. DN-mm inch mm inch mm lb/ft kg/m
1/2″ 15 0.840 21.3 0.109 2.77 0.85 1.268
3/4″ 20 1.050 26.7 0.113 2.87 1.13 1.685
1″ 25 1.315 33.4 0.133 3.38 1.68 2.501
1 1/4″ 32 1.660 42.2 0.14 3.56 2.28 3.386
1 1/2″ 40 1.900 48.3 0.145 3.68 2.73 4.049
2″ 50 2.375 60.3 0.154 3.91 3.69 5.442
2 1/2″ 65 2.875 73.0 0.203 5.16 5.83 8.630
3″ 80 3.500 88.9 0.216 5.49 7.62 11.285
3 1/2″ 90 4.000 101.6 0.226 5.74 9.21 13.570
4″ 100 4.500 114.3 0.237 6.02 10.91 16.074
5″ 125 5.563 141.3 0.258 6.55 14.82 21.775
6″ 150 6.625 168.3 0.28 7.11 19.20 28.265
8″ 200 8.625 219.1 0.322 8.18 28.58 42.535
10″ 250 10.750 273.1 0.365 9.27 40.52 60.306
12″ 300 12.750 323.9 0.406 10.31 53.57 79.734

UL FM fire pipe

UL FM listed

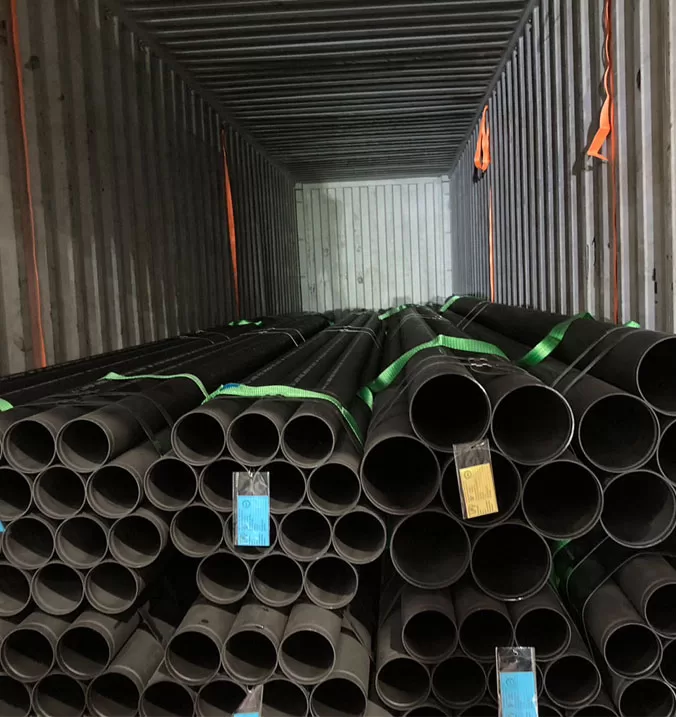

Fire Pipe loading

Safety

All specification size

1/2-12 in
